How do you determine the correct duct size for each room?

Branch ducts are sized using Manual D calculations that account for the room's cooling load, distance from the air handler, and the number of bends in the duct run, ensuring adequate airflow without excessive velocity that creates noise.

What happens when ducts are installed in unconditioned attic spaces?

Insulation is applied to prevent condensation on cold duct surfaces and reduce heat gain from attic temperatures that often exceed one hundred twenty degrees during Florida afternoons, which would otherwise warm the cooled air before it reaches living spaces.

Why does duct layout matter as much as duct size?

Excessive bends, crushed sections, and long runs with multiple direction changes all increase resistance to airflow, meaning that even correctly sized ducts will underperform if the route from the air handler to the register is poorly designed.

When should I replace ductwork instead of sealing existing runs?

Replacement makes sense when ducts are undersized for current equipment, routed inefficiently through the property, deteriorated beyond effective sealing, or located in areas that will be inaccessible after planned renovations.

What improvements are noticeable immediately after installation?

Temperature differences between rooms decrease within the first day, airflow volume increases at previously weak registers, and total system runtime drops because the equipment no longer compensates for lost capacity in the duct system.

Ductwork Installation

Ductwork routes conditioned air from your HVAC equipment to every room in your property, but sizing errors, poor layout design, or leaking connections cause the temperature variations and comfort problems that balanced systems avoid. Precision Comfort HVAC Services LLC installs new duct layouts, replacement ductwork, and airflow improvement projects for residential homes and light commercial properties in Orlando. Properly installed duct systems reduce energy waste by delivering cooled air where it is needed without losing capacity to leaks or restriction, which becomes especially important when equipment runs continuously during Florida's extended cooling season.

Duct design begins with calculating airflow requirements for each room based on heat load, then determining trunk line sizes and branch duct dimensions that maintain velocity without creating noise or pressure drop. Return air pathways matter as much as supply ducts because undersized returns starve the system and reduce efficiency. Joints are sealed with mastic rather than standard cloth tape, which degenerates in attic heat and allows conditioned air to escape into unconditioned spaces.

Request a ductwork installation estimate based on your property's layout and cooling needs.

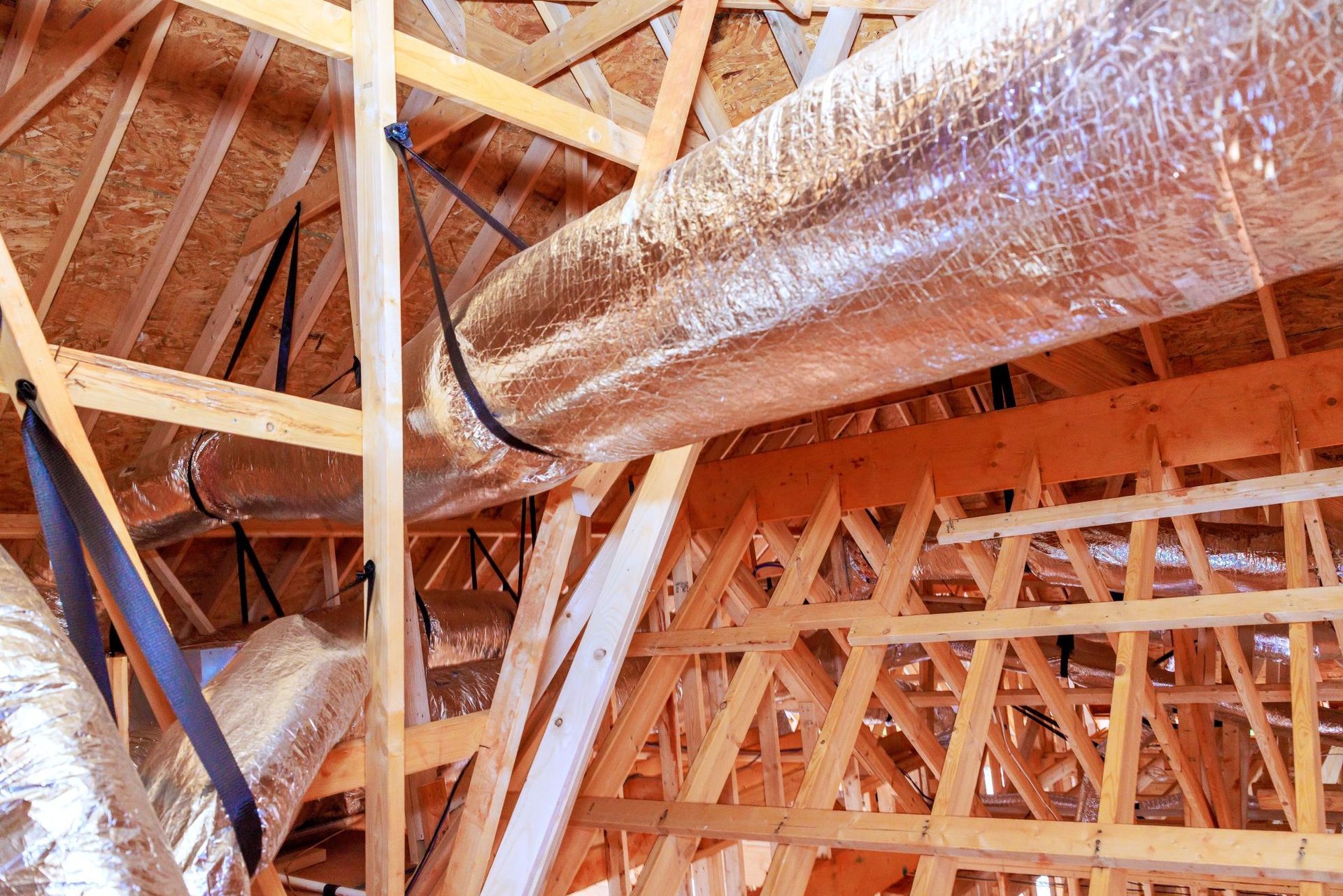

Installation involves routing ducts through attics, crawlspaces, or wall cavities while minimizing bends that restrict airflow and avoiding compression that reduces effective duct diameter. Insulation is applied to ducts running through unconditioned spaces to prevent condensation and reduce heat gain that forces the system to work harder. Coordination with HVAC replacements ensures that new equipment and ductwork are matched for capacity, preventing situations where powerful equipment is choked by undersized distribution or oversized ducts reduce air velocity below effective levels.

After ductwork installation completes, you notice that all rooms reach the same temperature instead of some staying warmer regardless of thermostat settings. Airflow volume increases at supply registers in previously under-served areas, and system runtime decreases because conditioned air reaches living spaces instead of leaking into attics. Humidity control improves throughout the property because the HVAC system can complete proper cooling cycles once airflow restrictions are eliminated.

The service includes duct layout design and physical installation, though it does not address insulation deficiencies or air sealing issues in the building envelope itself. Ductwork projects combined with ventilation upgrades typically produce better indoor air quality than duct-only installations because supply and exhaust air are balanced from the beginning.

How do you determine the correct duct size for each room?
Branch ducts are sized using Manual D calculations that account for the room's cooling load, distance from the air handler, and the number of bends in the duct run, ensuring adequate airflow without excessive velocity that creates noise.
What happens when ducts are installed in unconditioned attic spaces?
Insulation is applied to prevent condensation on cold duct surfaces and reduce heat gain from attic temperatures that often exceed one hundred twenty degrees during Florida afternoons, which would otherwise warm the cooled air before it reaches living spaces.
Why does duct layout matter as much as duct size?
Excessive bends, crushed sections, and long runs with multiple direction changes all increase resistance to airflow, meaning that even correctly sized ducts will underperform if the route from the air handler to the register is poorly designed.
When should I replace ductwork instead of sealing existing runs?
Replacement makes sense when ducts are undersized for current equipment, routed inefficiently through the property, deteriorated beyond effective sealing, or located in areas that will be inaccessible after planned renovations.
What improvements are noticeable immediately after installation?
Temperature differences between rooms decrease within the first day, airflow volume increases at previously weak registers, and total system runtime drops because the equipment no longer compensates for lost capacity in the duct system.

Duct Systems That Balance Every Room
